REMS Swing

Single-hand tube bender

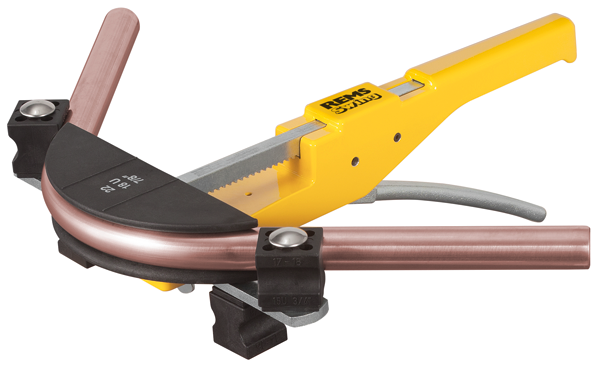

REMS Swing
Practical single-hand tool for exact tube bending up to 90°. For trade and industry. For the building site and the workshop. Soft copper pipes, also thin-walled Ø 10–22 mm, Ø 3/8–7/8", s ≤ 1 mm. Coated soft copper tubes Ø 10–18 mm, Ø 3/8–5/8", s ≤ 1 mm. Coated steel tubes of pressfitting system mapress C-STAHL Ø 12–18 mm. Soft precision steel tubes Ø 10–18 mm, s ≤ 1 mm. Multi-layer composite tubes Ø 14–32 mm.

REMS Swing – bending tubes where they are installed.
Universally useable for pipe types. Fast operation through quick-acting in-feed forward and release. Proven, reliable ratchet feed. Ideal also for coated tubes.

Operating instructions Swing (PDF)

Parts list Swing (PDF)



REMS Swing Drive unit

Art. no. 153100 R
 <br/>REMS Swing

REMS Swing Drive unit UP

Art. no. 153300 R
 <br/>REMS Swing
 <br/>Bk-former holder S Ø 10-26 mm
 <br/>Back-former holder Ø 32 mm

Back former UP 16-32 mm

Art. no. 153307 R
 <br/>Back former UP 16-32 mm
 <br/>Device for reverse bends

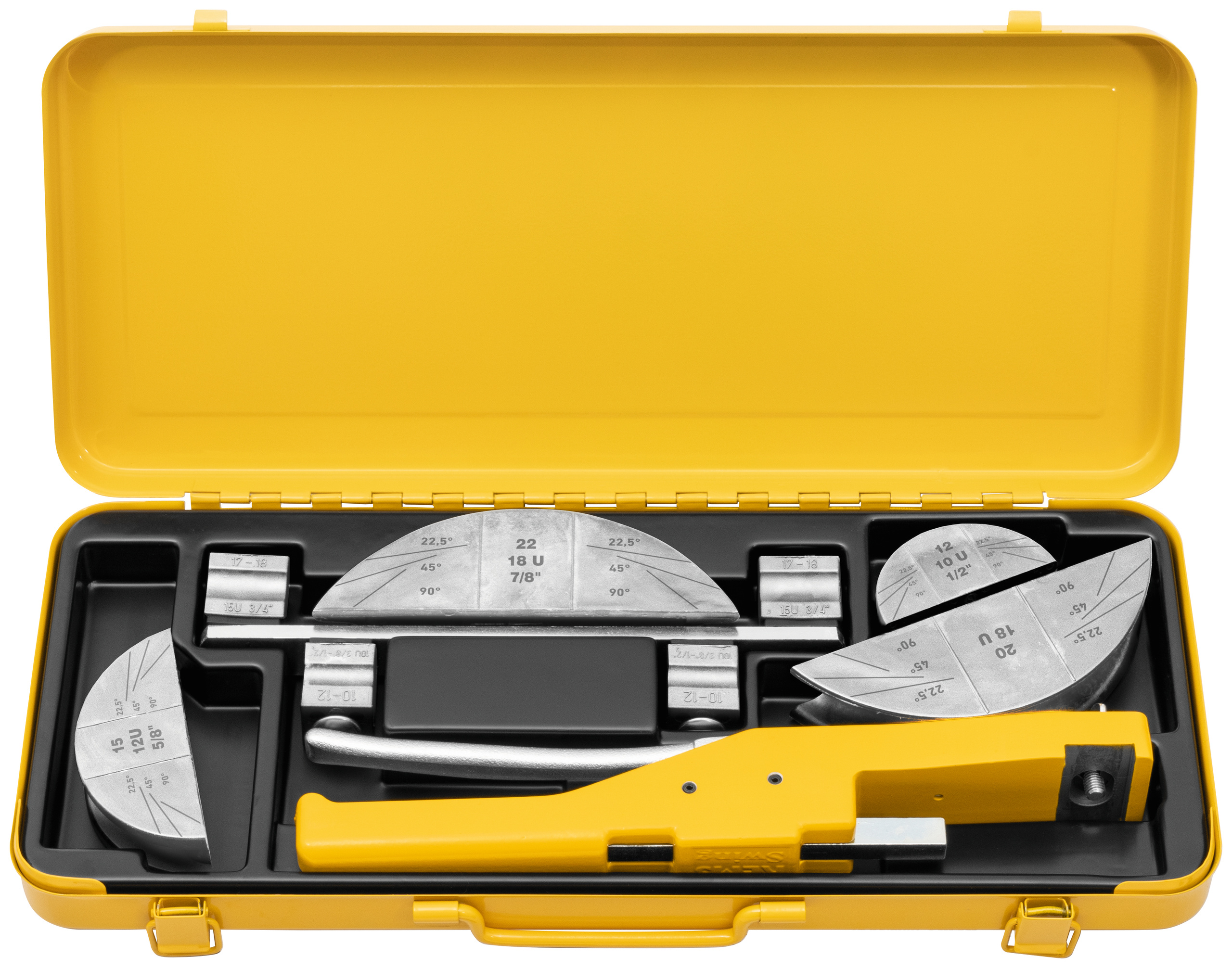

Steel case with insert

Art. no. 153265 R
 <br/>Steel case with insert
